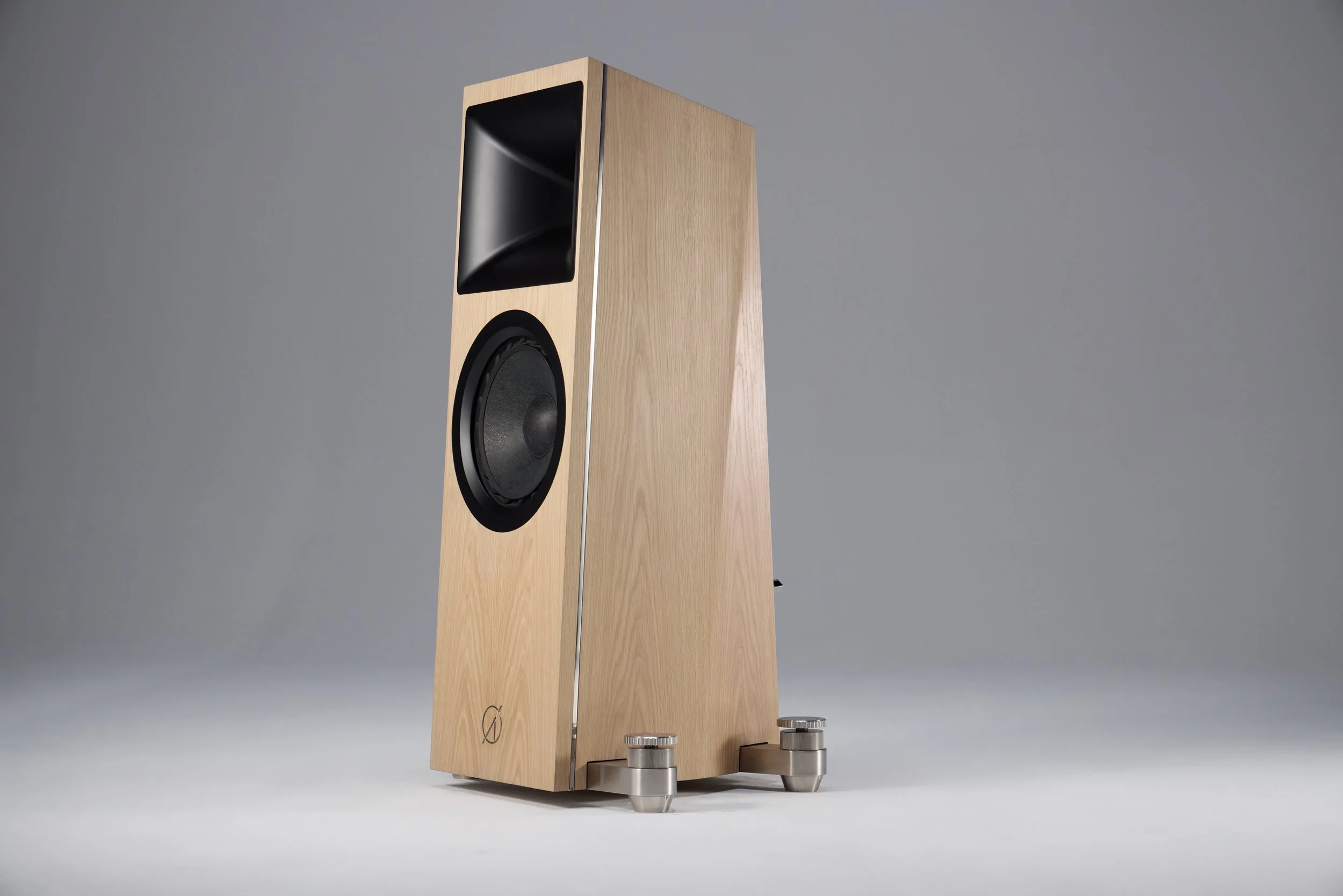

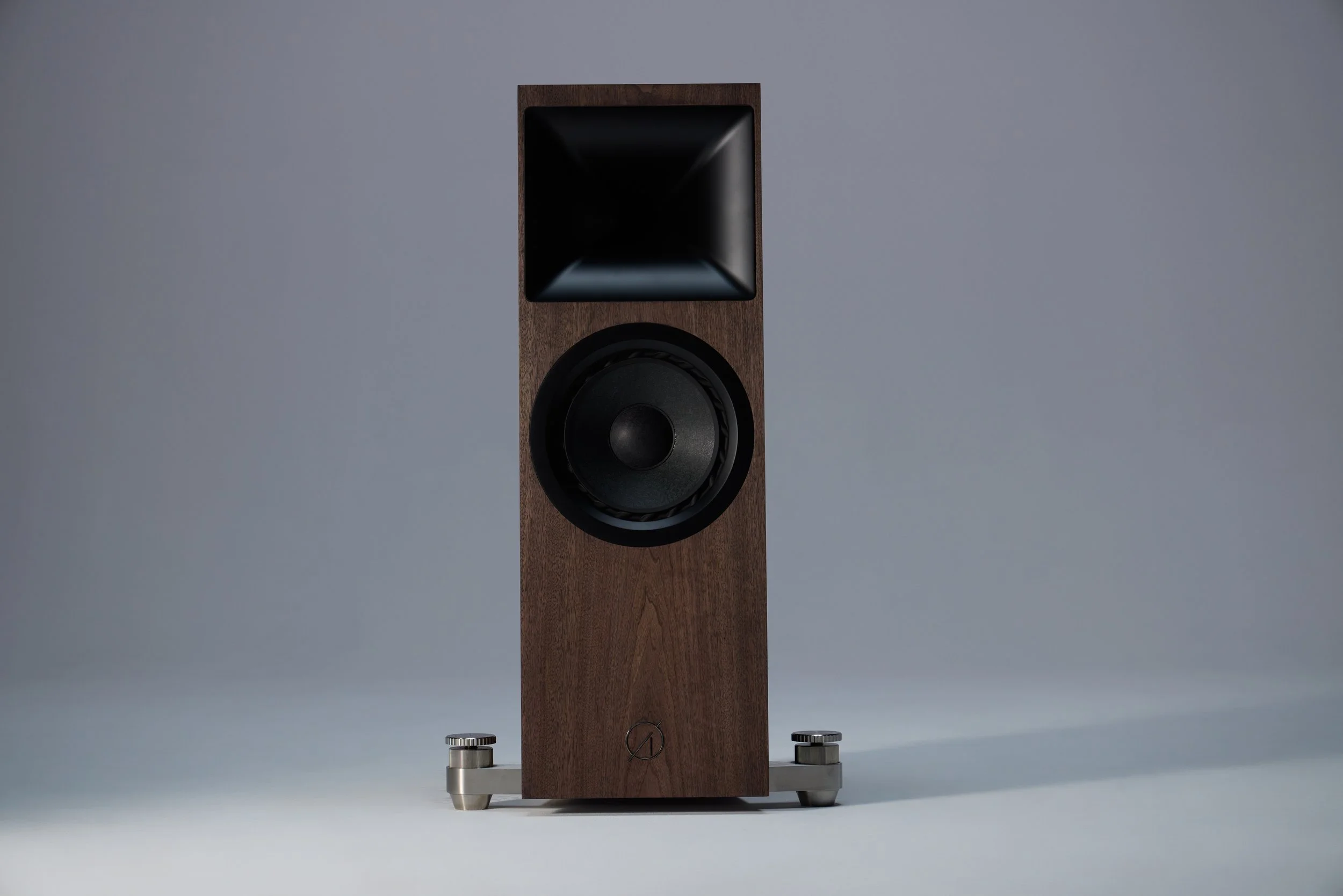

YMIR
Developed from a complete blank-sheet approach
Reference-level performance in a human-scale form
Designed for consistent behaviour in real listening rooms
Balanced between dynamics, tonal accuracy and usability
Visual design reflects structure and acoustic purpose

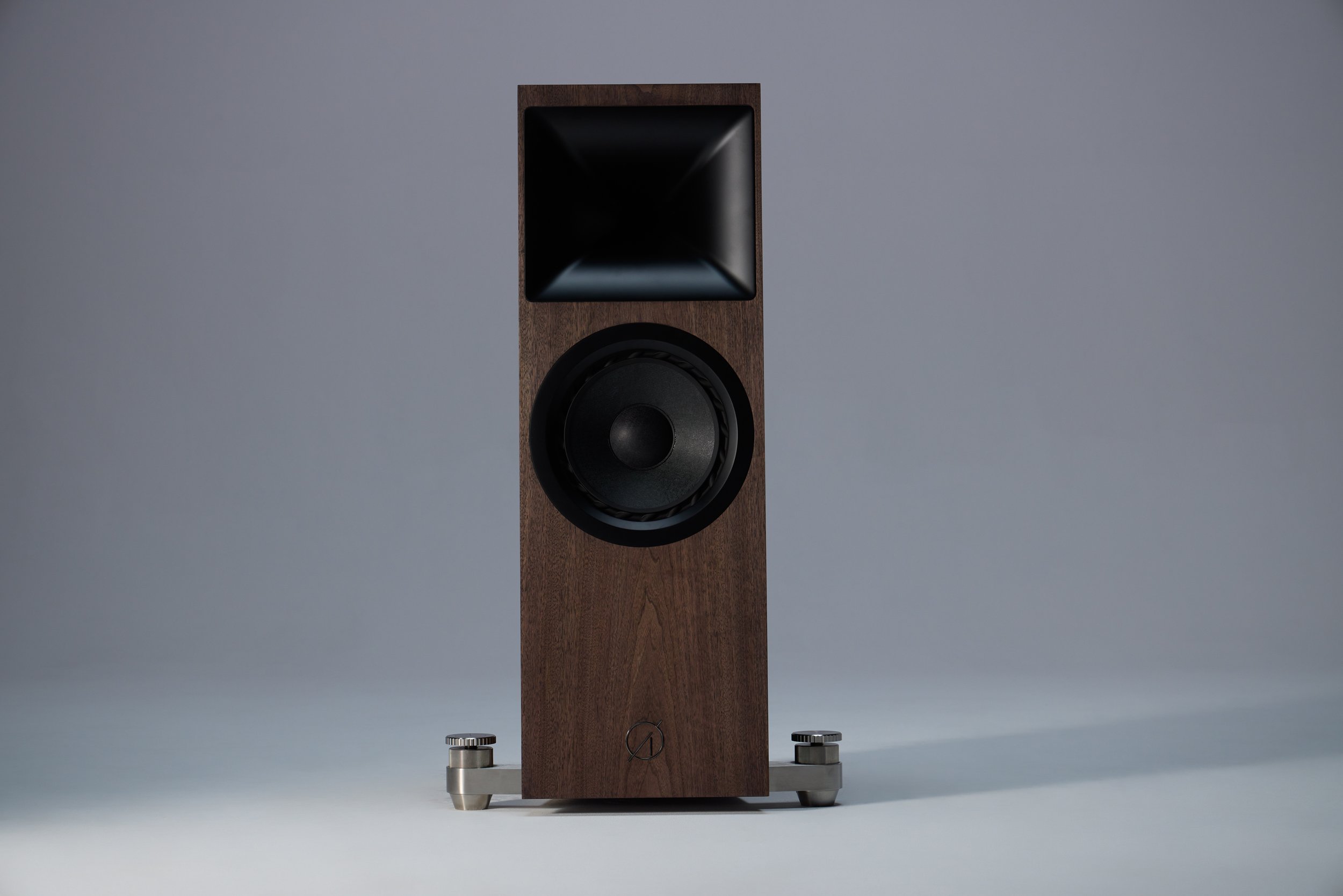

10 mm stainless steel front baffle for structural rigidity
Reduces panel vibration and energy storage
Provides stable platform for driver operation
Improves transient clarity and low-level detail
Contributes t o overall cabinet silence

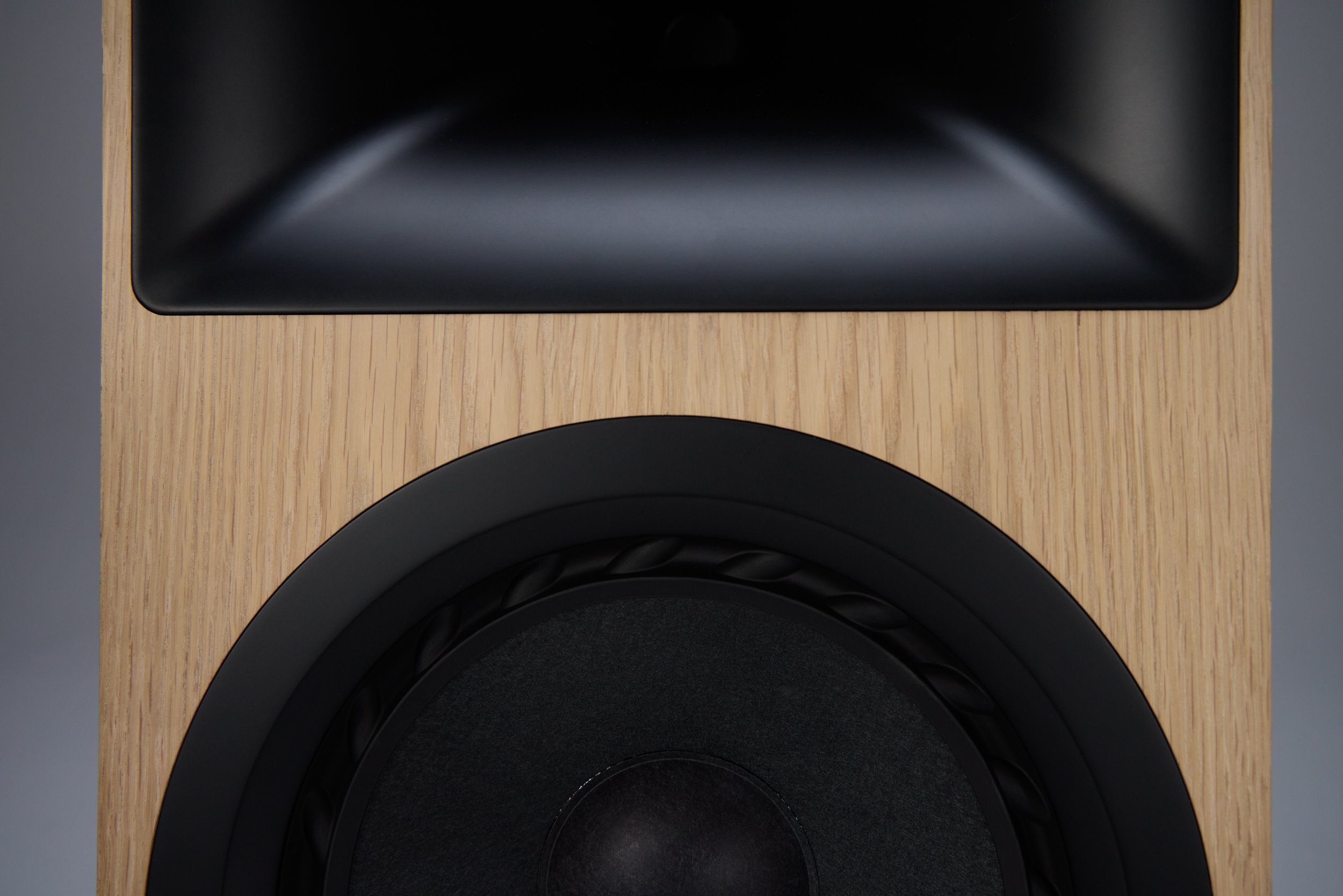

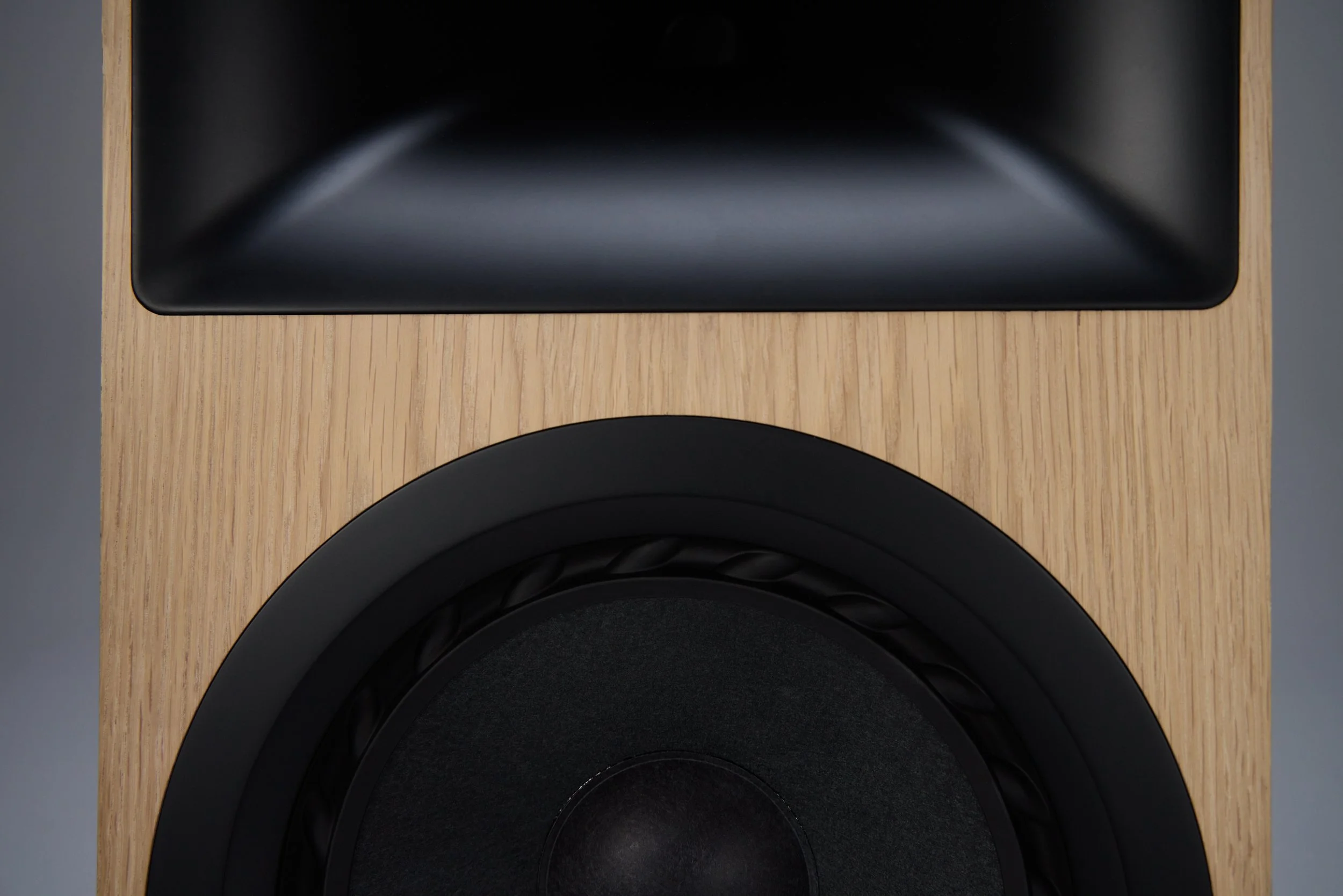

Ø Audio Q.V.S.T. waveguide for controlled directivity
Smooth off-axis response and stable room interaction
Newly developed compression driver with 76 mm carbon diaphragm
Low distortion across a wide bandwidth
Designed for natural integration — no "horn signature

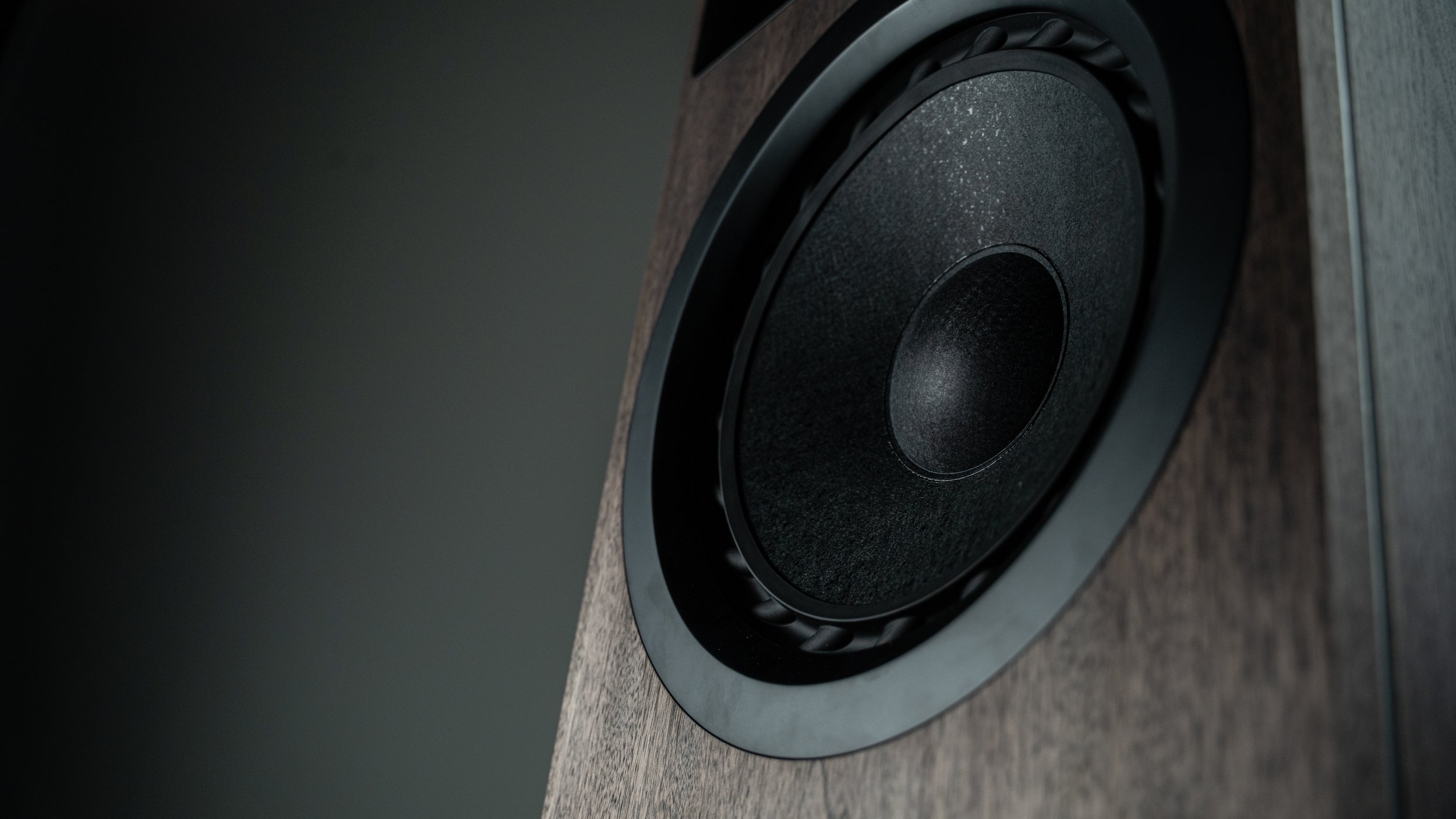

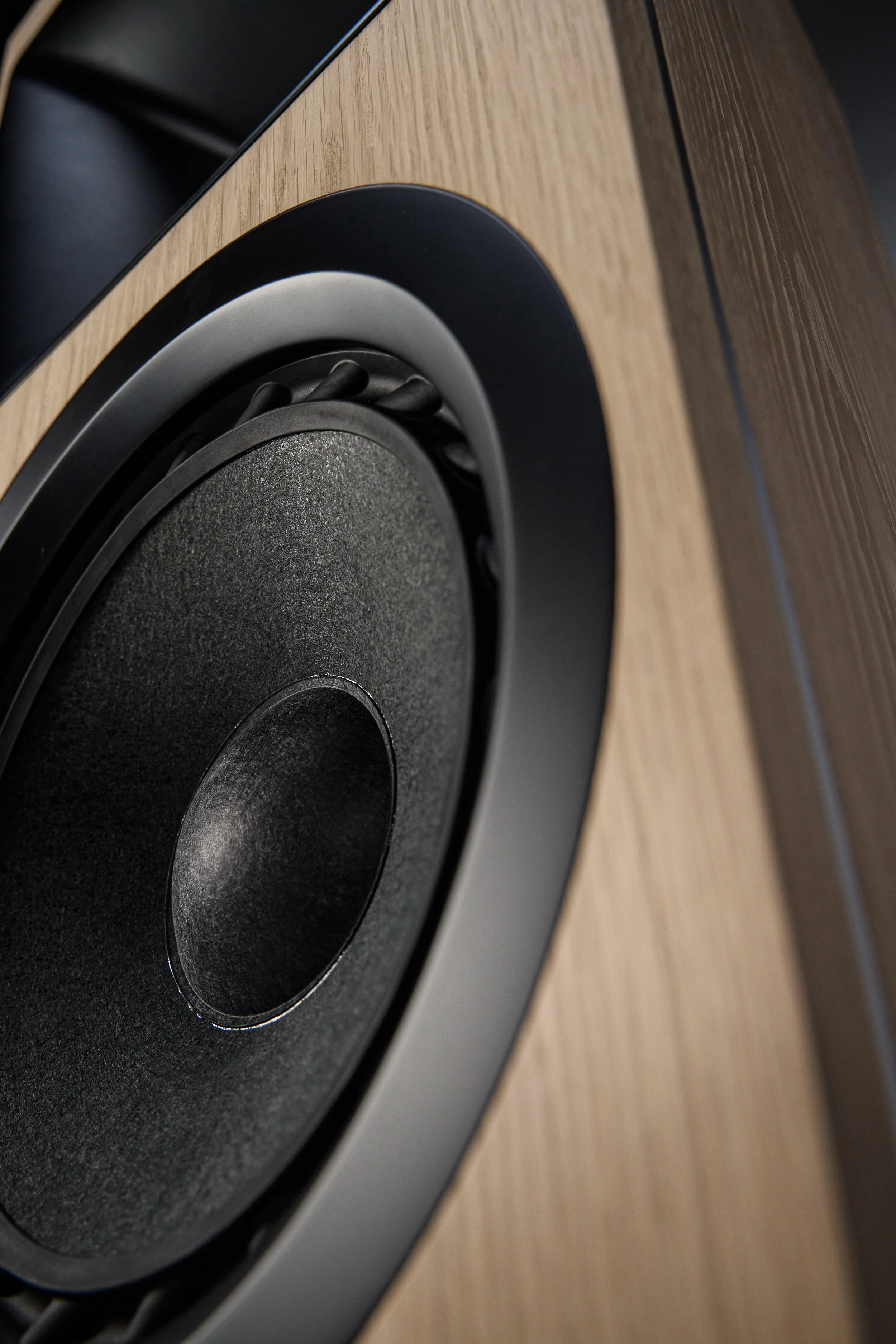

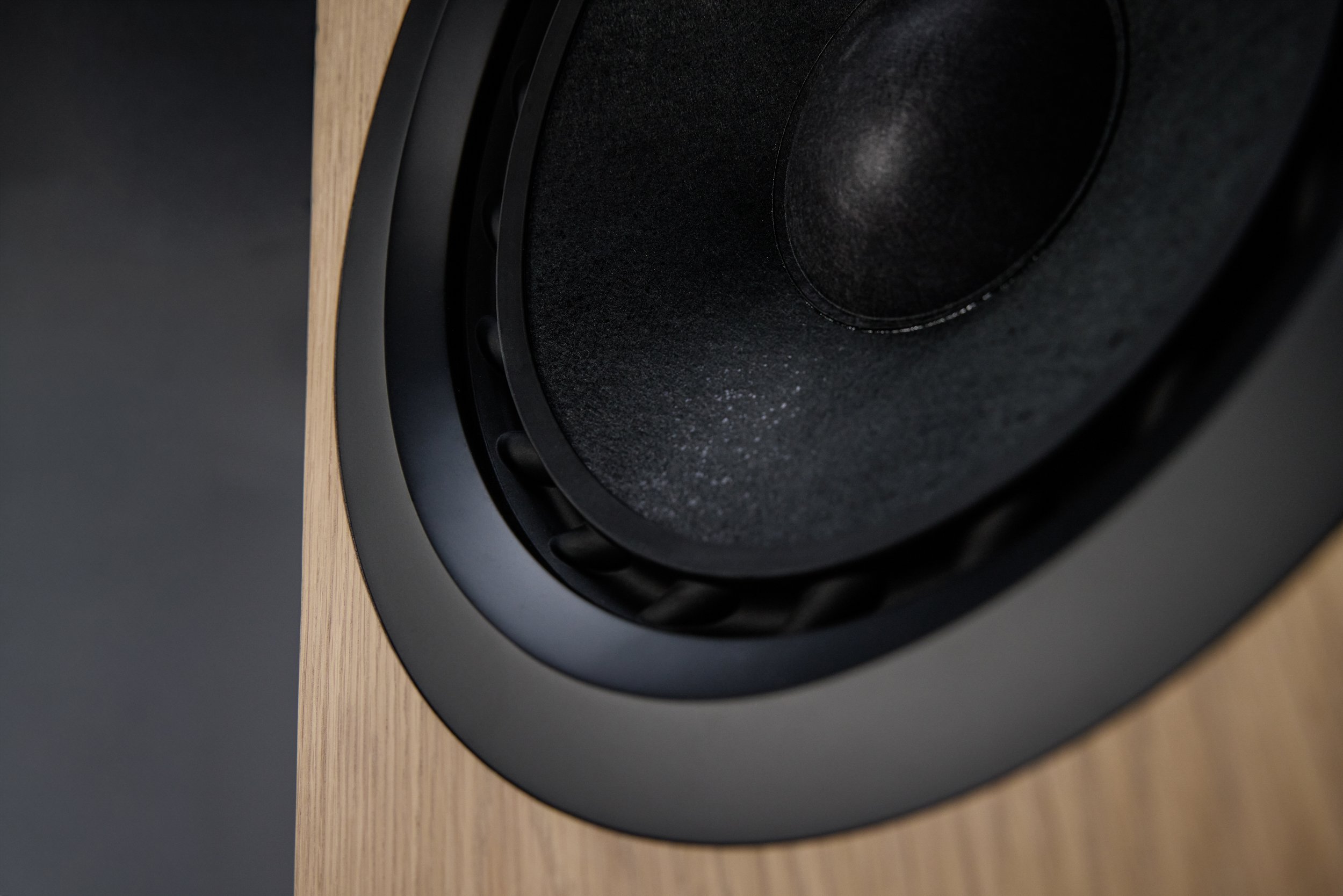

Newly developed 12" driver with extended linear excursion
Highly linear motor system for low distortion
Carbon fiber composite diaphragm with damping core
Stable behavior across low and high playback levels
Designed for wide bandwidth and seamless integration

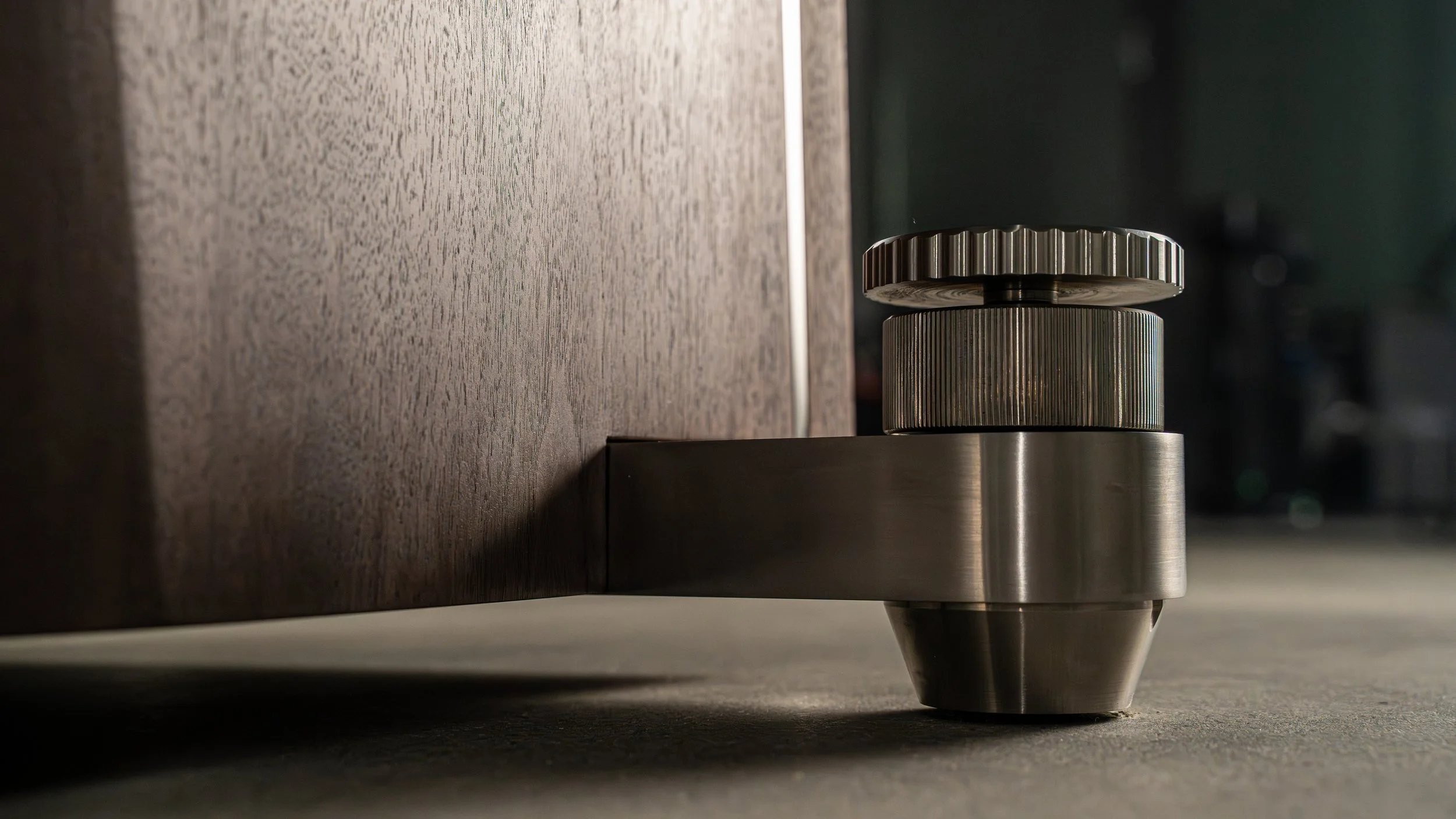

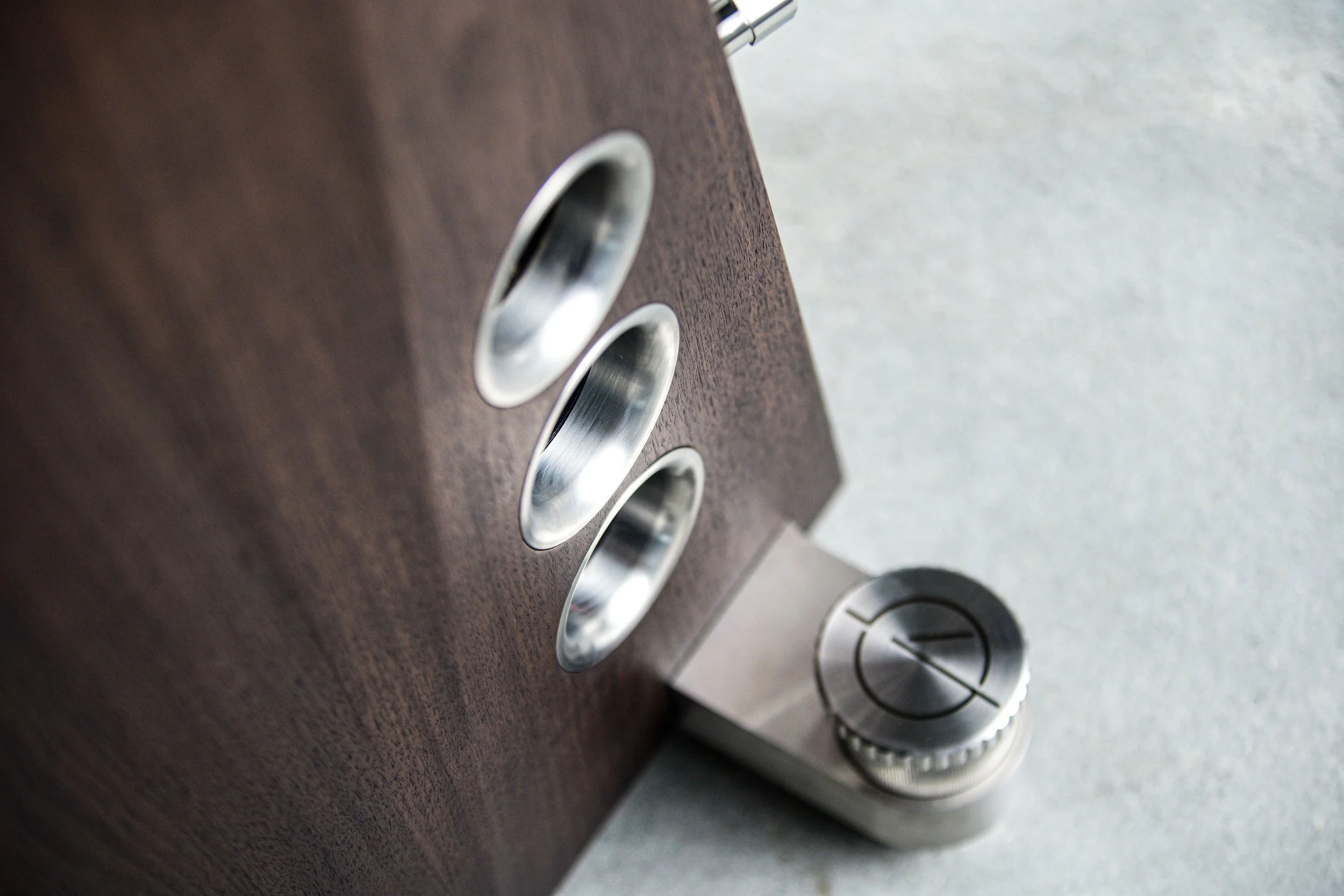

Solid stainless steel outriggers for structural stability
Two-stage decoupling system with tungsten ball interface
Reduces energy transfer between speaker and floor
Improves clarity, focus and low-frequency control
Height-adjustable for precise leveling
Assisted First-order crossover topology
Custom resin potted copper foil capacitors and inductors
Low component count for signal integrity

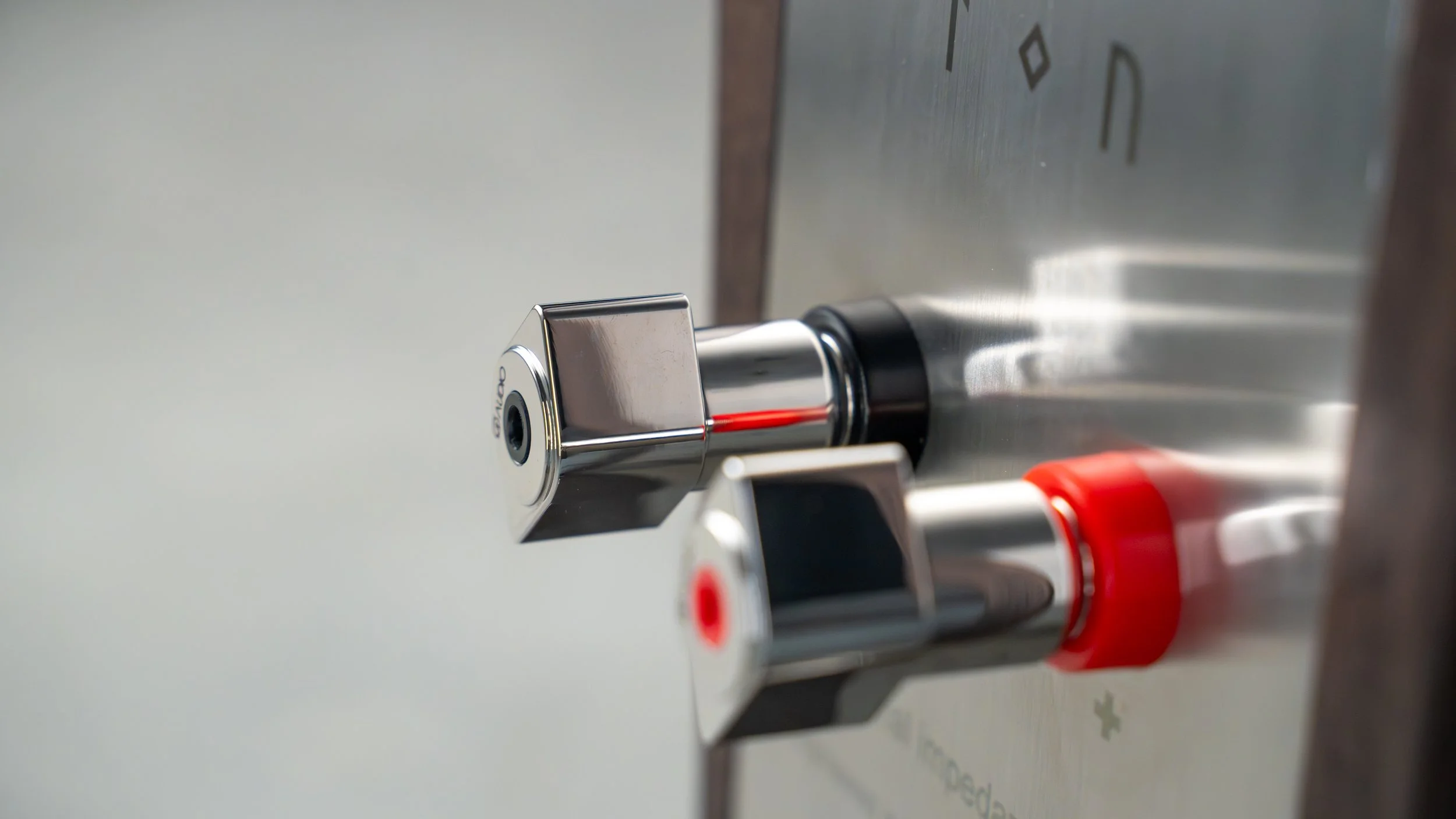

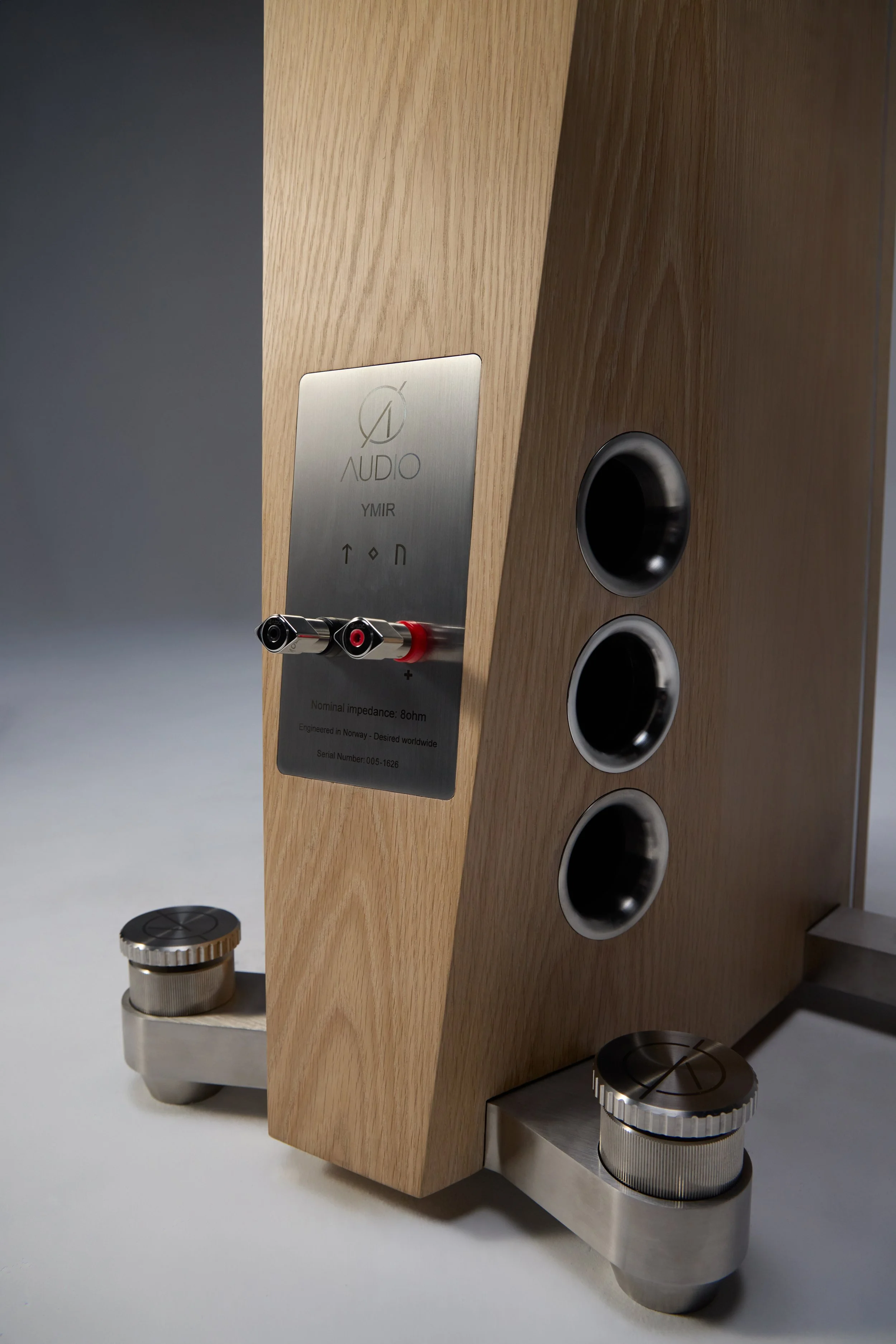

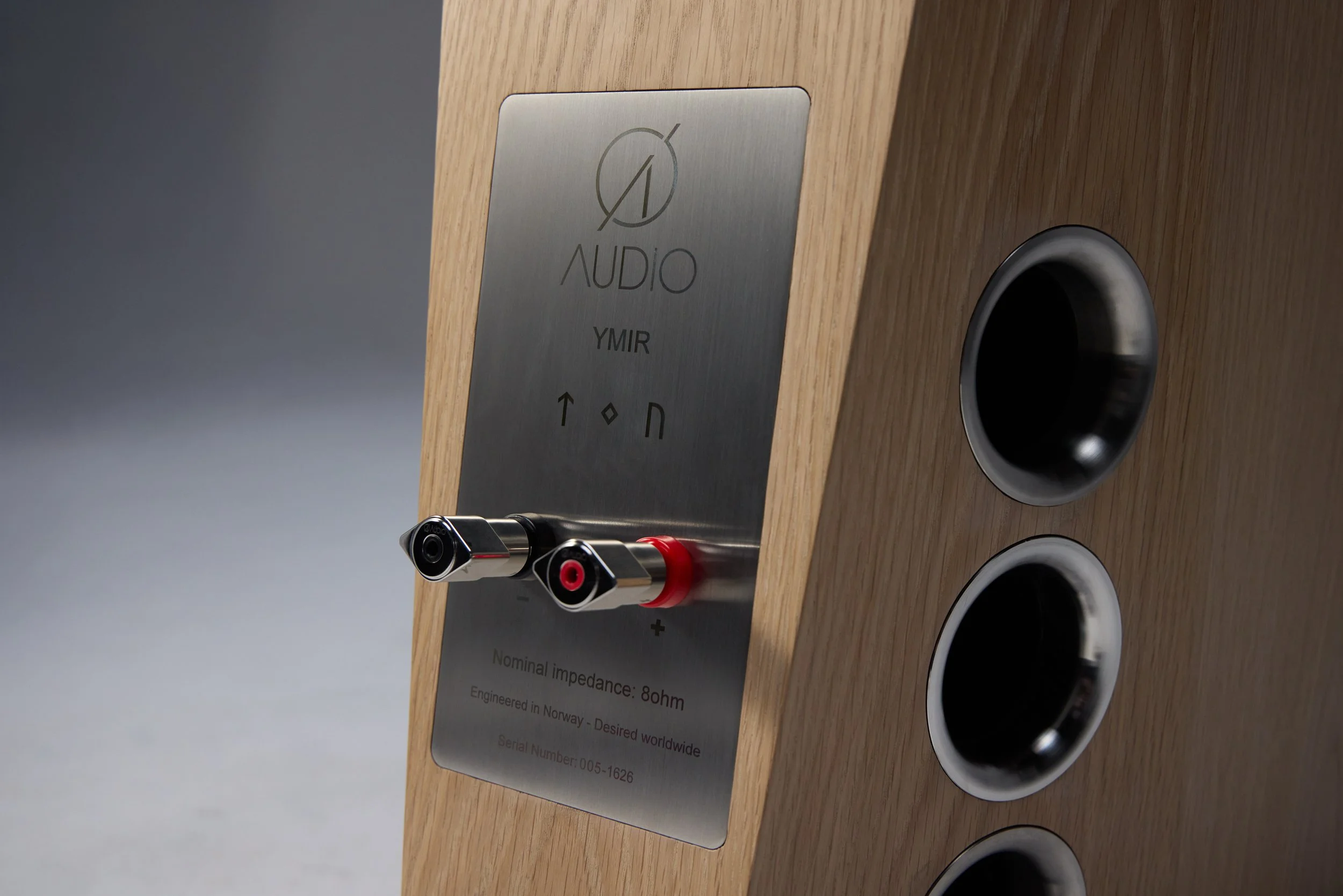

Proprietary terminals with integrated torque limiter
Designed to preserve phase coherence and microdynamics

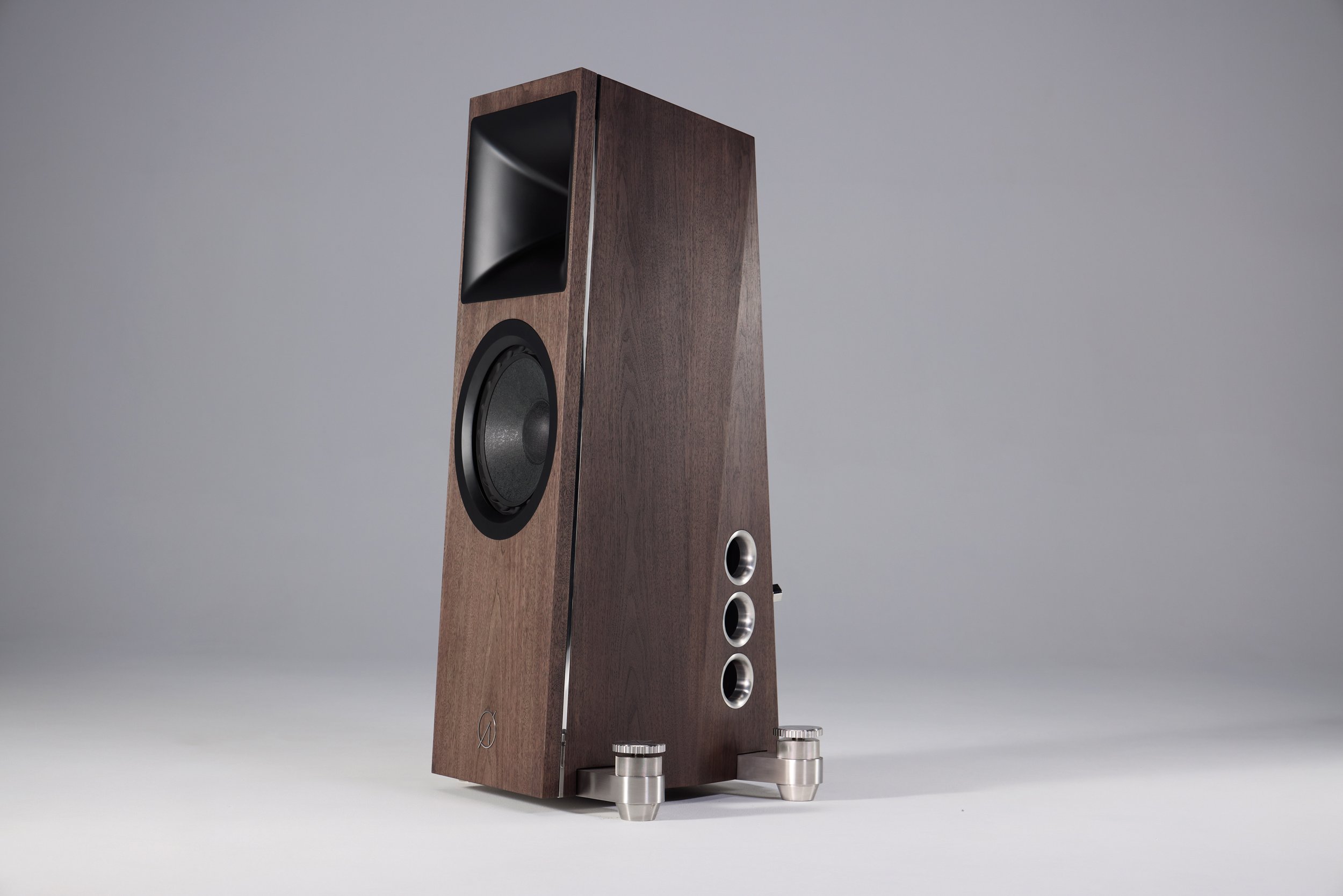

Available Finishes:
Specifications:
Frequency response: 26 Hz — 22 kHz
Impedance: 8 Ohm (minimum 8 Ohm)
Sensitivity: 93,5 dB|
Dimensions (H × W × D):
114.5 × 38.2 × 52.9 cm (excluding feet)
Footprint width: 62.6 cm
Weight: 120 kg per speaker
Packaging: Flight case
